Description

ACSON Air Curtain

ACA308D/BP
ACA408D/BP
ACA310D/BP
ACA410D/BP
ACA312D/BP
ACA412D/BP

Air Curtain – ACA 308D
Model Name
ACA 308D
Performance
Air Throw Range
8 ft
Air Flow (H / L)
580 / 482 CFM
Sound Pressure Level (dBA)
Indoor (H / L) dBA
51 / 48
Electrical Data
Power Source (V / Ф / Hz)
220 – 240 / 1 / 50
Nominal Total Input Power (H / L) W
130 / 104
Nominal Operating Current (A)
0.59 / 0.47
Physical Specification
Indoor Unit Dimension (Height x Width x Depth)
230 x 900 x 212 mm
Indoor Unit Weight (kg)
17
Air Curtain – ACA 408D
Model Name
ACA 408D
Performance
Air Throw Range
8 ft
Air Flow (H / L)
754 / 620 CFM
Sound Pressure Level (dBA)
Indoor (H / L) dBA
51 / 48
Electrical Data
Power Source (V / Ф / Hz)
220 – 240 / 1 / 50
Nominal Total Input Power (H / L) W
160 / 127
Nominal Operating Current (A)
0.73 / 0.57
Physical Specification
Indoor Unit Dimension (Height x Width x Depth)
230 x 1,200 x 212 mm
Indoor Unit Weight (kg)
21
Air Curtain – ACA 310D
Model Name
ACA 310D
Performance
Air Throw Range
10 ft
Air Flow (H / L)
635 / 510 CFM
Sound Pressure Level (dBA)
Indoor (H / L) dBA
57 / 54
Electrical Data
Power Source (V / Ф / Hz)
220 – 240 / 1 / 50
Nominal Total Input Power (H / L) W
195 / 142
Nominal Operating Current (A)
0.81 / 0.59
Physical Specification
Indoor Unit Dimension (Height x Width x Depth)
230 x 900 x 212 mm
Indoor Unit Weight (kg)
17
Air Curtain – ACA 410D
Model Name
ACA 410D
Performance
Air Throw Range
10 ft
Air Flow (H / L)
810 / 700 CFM
Sound Pressure Level (dBA)
Indoor (H / L) dBA
59 / 56
Electrical Data
Power Source (V / Ф / Hz)
220 – 240 / 1 / 50
Nominal Total Input Power (H / L) W
260 / 189
Nominal Operating Current (A)
1.08 / 0.79
Physical Specification
Indoor Unit Dimension (Height x Width x Depth)
230 x 1,200 x 212 mm
Indoor Unit Weight (kg)
21
Air Curtain – ACA 312D
Model Name
ACA 312D
Performance
Air Throw Range
12 ft
Air Flow (H / L)
698 / 600 CFM
Sound Pressure Level (dBA)
Indoor (H / L) dBA
60 / 57
Electrical Data
Power Source (V / Ф / Hz)
220 – 240 / 1 / 50
Nominal Total Input Power (H / L) W
218 / 171
Nominal Operating Current (A)
0.92 / 0.72
Physical Specification
Indoor Unit Dimension (Height x Width x Depth)
230 x 900 x 212 mm
Indoor Unit Weight (kg)
17
Air Curtain – ACA 412D
Model Name
ACA 412D
Performance
Air Throw Range
12 ft
Air Flow (H / L)
1,010 / 820
Sound Pressure Level (dBA)
Indoor (H / L) dBA
60 / 57
Electrical Data
Power Source (V / Ф / Hz)
220 – 240 / 1 / 50
Nominal Total Input Power (H / L) W
285 / 222
Nominal Operating Current (A)
1.2 / 0.92
Physical Specification
Indoor Unit Dimension (Height x Width x Depth)
230 x 1,200 x 212 mm
Indoor Unit Weight (kg)
21

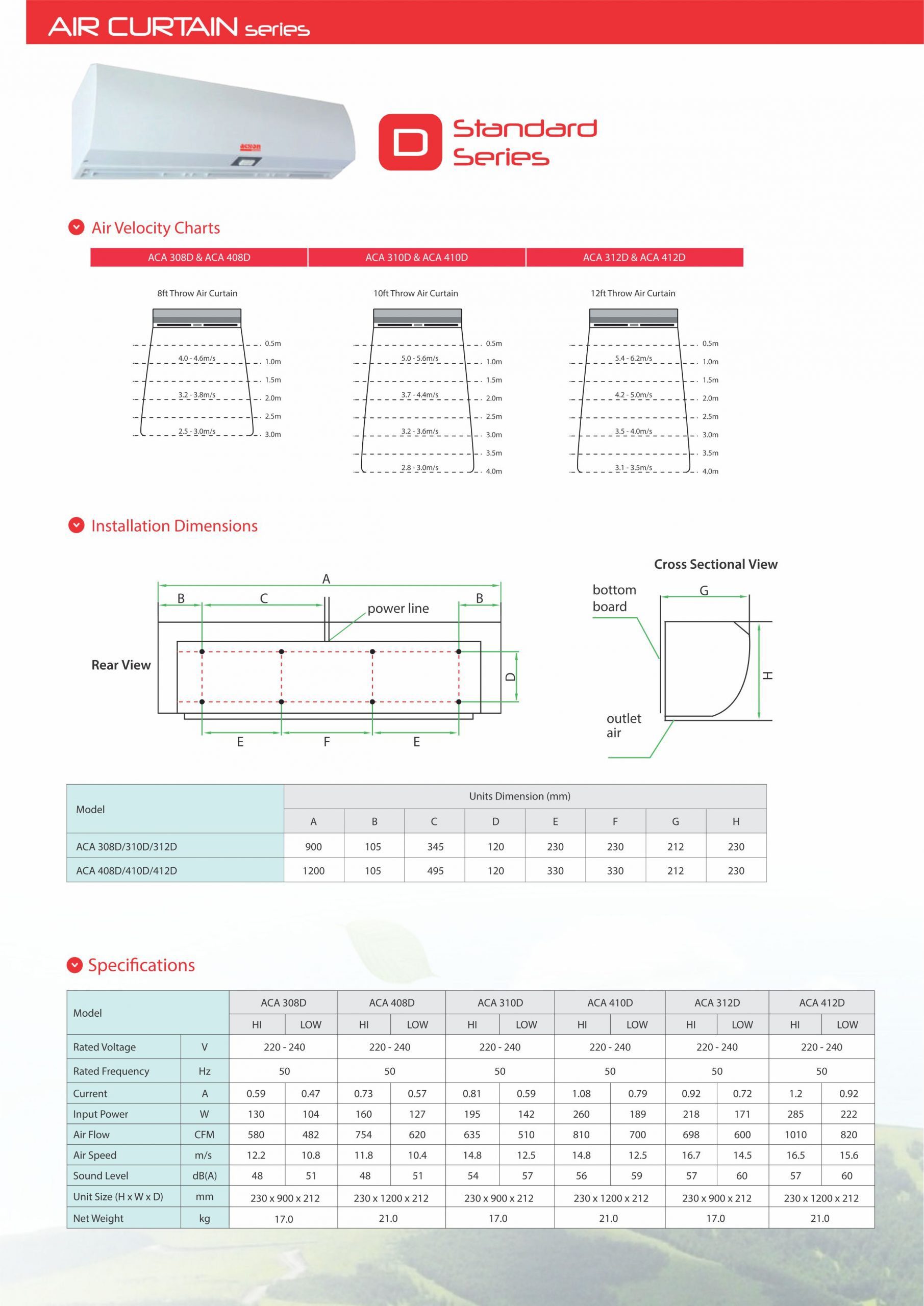

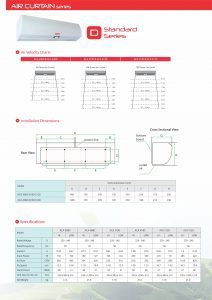

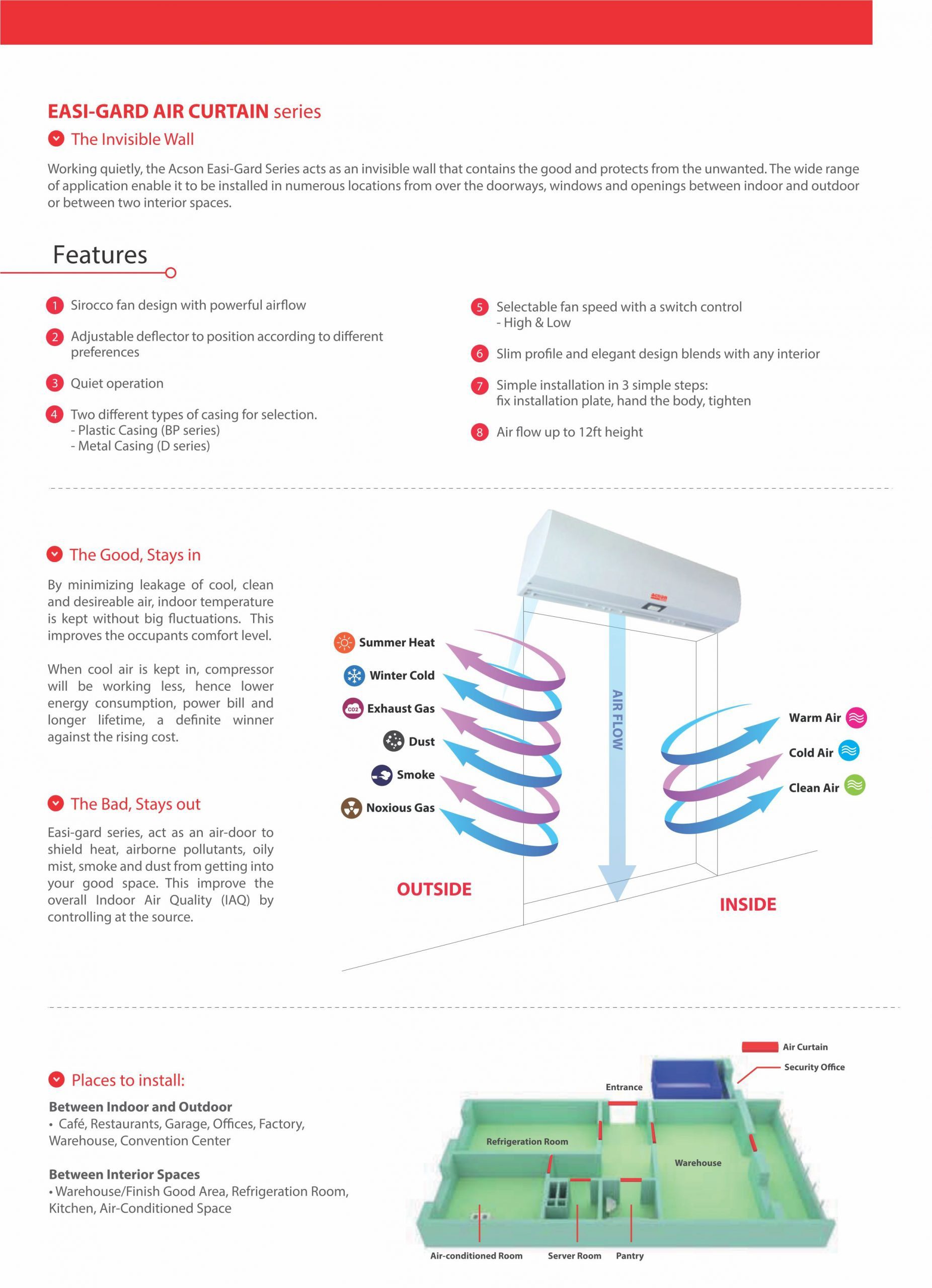

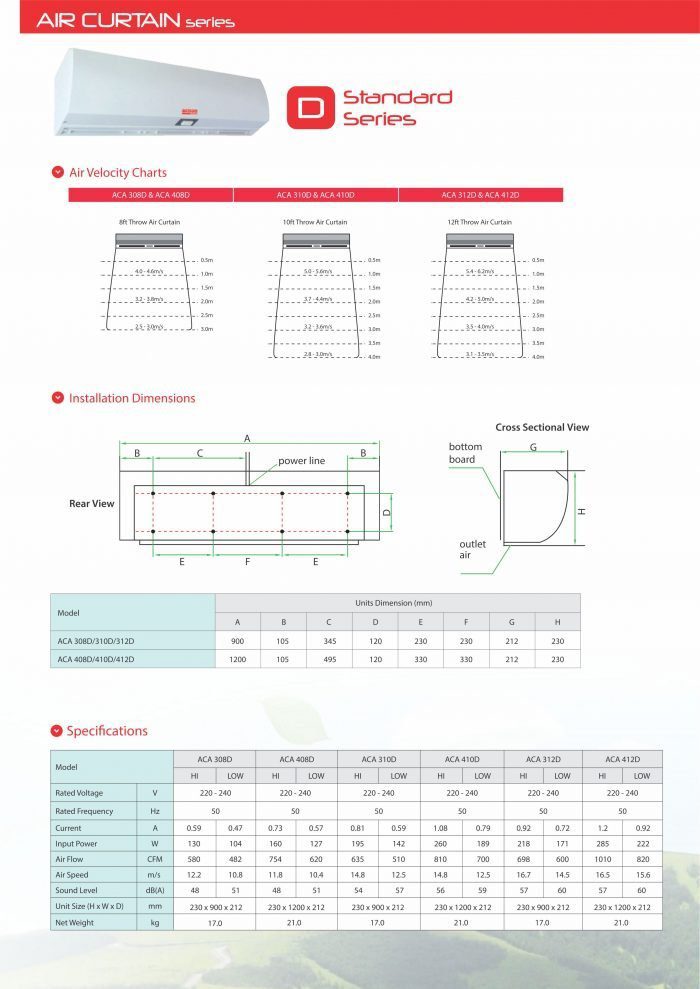

Catalogue :  Acson Air Curtain Series RV131221CO(lowres)
