Description

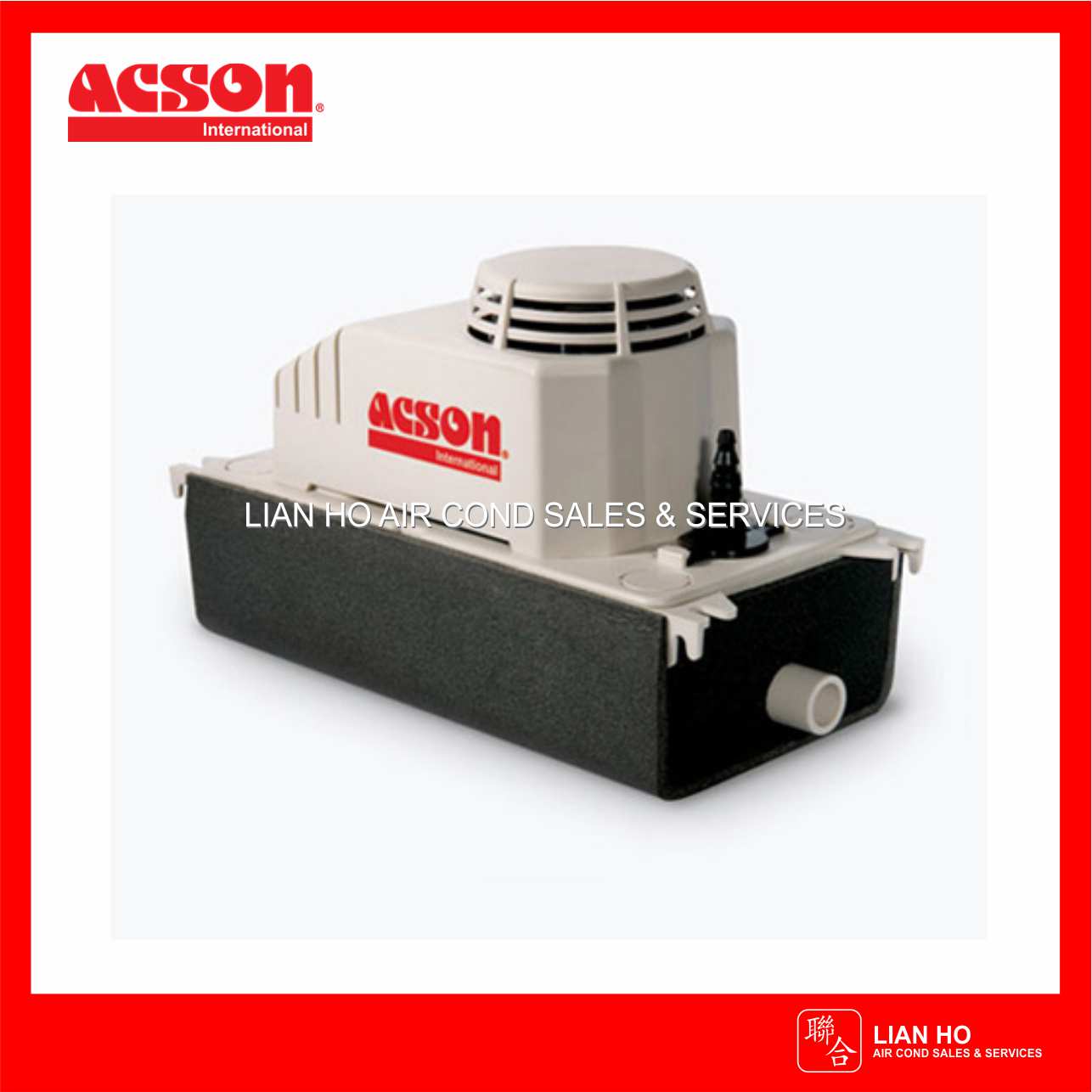

ACSON Drainge Pump & Hose / Water Pump (EASI-FLO 100)

EASI-FLO 100

The Mighty

With a mighty tank and drainage rate to meet your needs, the EASI-FLO 100 shows that size does matter! If you’re working with shallow ceilings, this one scores major points for flexibility!

Drainage Pump – Easi-Flo 100
Model Name
Easi-Flo 100
Performance
Flow Rate (litre/min)
2.5
Maximum Pump Distance (Horizontal)
15
Maximum Pump Distance (Vertical)
4
Sound Pressure Level (dBA)
Indoor
50
Electrical Data
Power Source (V / Ф / Hz)
220 – 240 / 1 / 50
Nominal Total Input Power (W)
58
Physical Specification
Indoor Unit Dimension (Height x Width x Depth)
140 x 110 x 250 mm
Indoor Unit Weight (kg / lb)
1.8
Technical Information
Tank Volume (litre)
0.85
Float Control
Mechanic Float Switch
Type of Drainage Tube
INSULATED ANTI FUNGUS PVC TUBE
Drainage Tube Diameter (mm)
4 OR 9.5
