Description

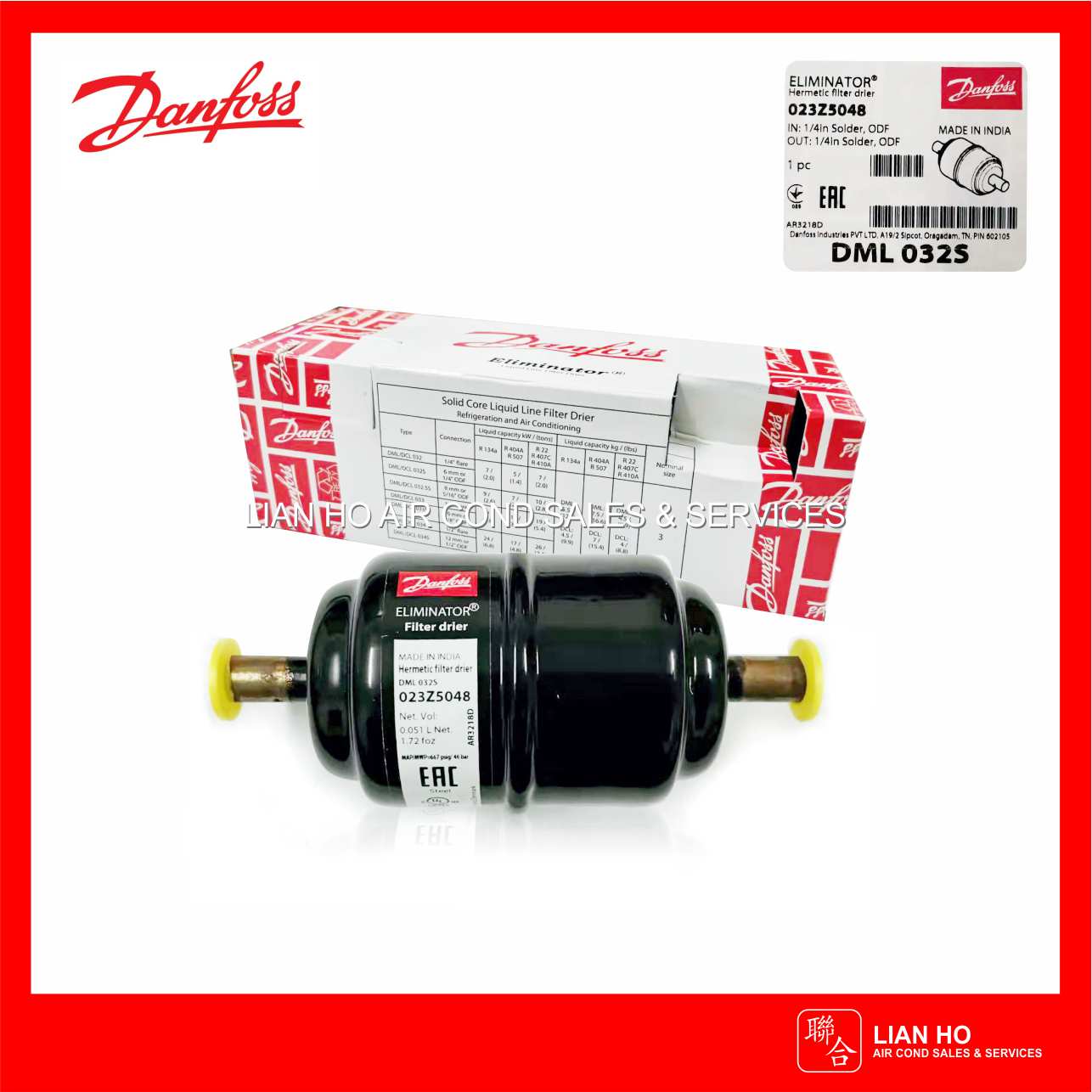

DANFOSS Eliminator Hermetic Filter Drier 023Z5048 (DML032S)
IN : 1/4in Solder, ODF
OUT : 1/4in Solder, ODF
MADE IN INDIA
Product details
| Gross weight | 0.17 kg |
| Net weight | 0.17 kg |
| EAN | 5702428155649 |
| Acid capacity [g] | 0.2 g |
| Acid capacity [oz] | 0.007 oz |
| Activated alum/Molec sieve [%] | 0% / 100% |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Copper |
| Core | Solid core |
| Core Size code | 03 cu.in. |
| Drying Cap[Drops of Water]24°C | R290: — R134a: 95 R32: 80 R404A: 98 R407C: 92 R410A: 86 R507: 103 |
| Drying Cap[Drops of Water]52°C | R290: — R134a: 87 R32: 73 R404A: 93 R407C: 85 R410A: 76 R507: 93 |
| Flow capacity [kW] | R134a: 5.8 R32: 8.8 R404A: 4.1 R407C: 5.9 R410A: 6.0 R290: 7.0 R507: 4.0 |
| Flow capacity [TR] | R134a: 1.6 R290: 2.0 R32: 2.5 R404A: 1.2 R407C: 1.7 R410A: 1.7 R507: 1.1 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Inlet 1 connection size [in] | 1/4 in |
| Inlet connection type | SOLDER, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 1.72 oz |
| Net volume [l] | 0.051 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 1/4 in |
| Outlet connection type | SOLDER, ODF |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product family name | DML |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 32 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515A |
| Refrigerants | R1234yf R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 R1234ze(E) |
| Serviceable | No |
| Shell volume [foz US] | 2.44 oz |
| Shell volume [l] | 0.07 L |
| Solid core surface [cm2] | 59 cm² |
| Solid core surface [in2] | 9.1 in² |
| Solid core volume [cm3] | 21 cm³ |
| Solid core volume [in3] | 1.3 in³ |
| Specification key | DML 032S |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DML |
| Type designation | DML 032S |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
