Description

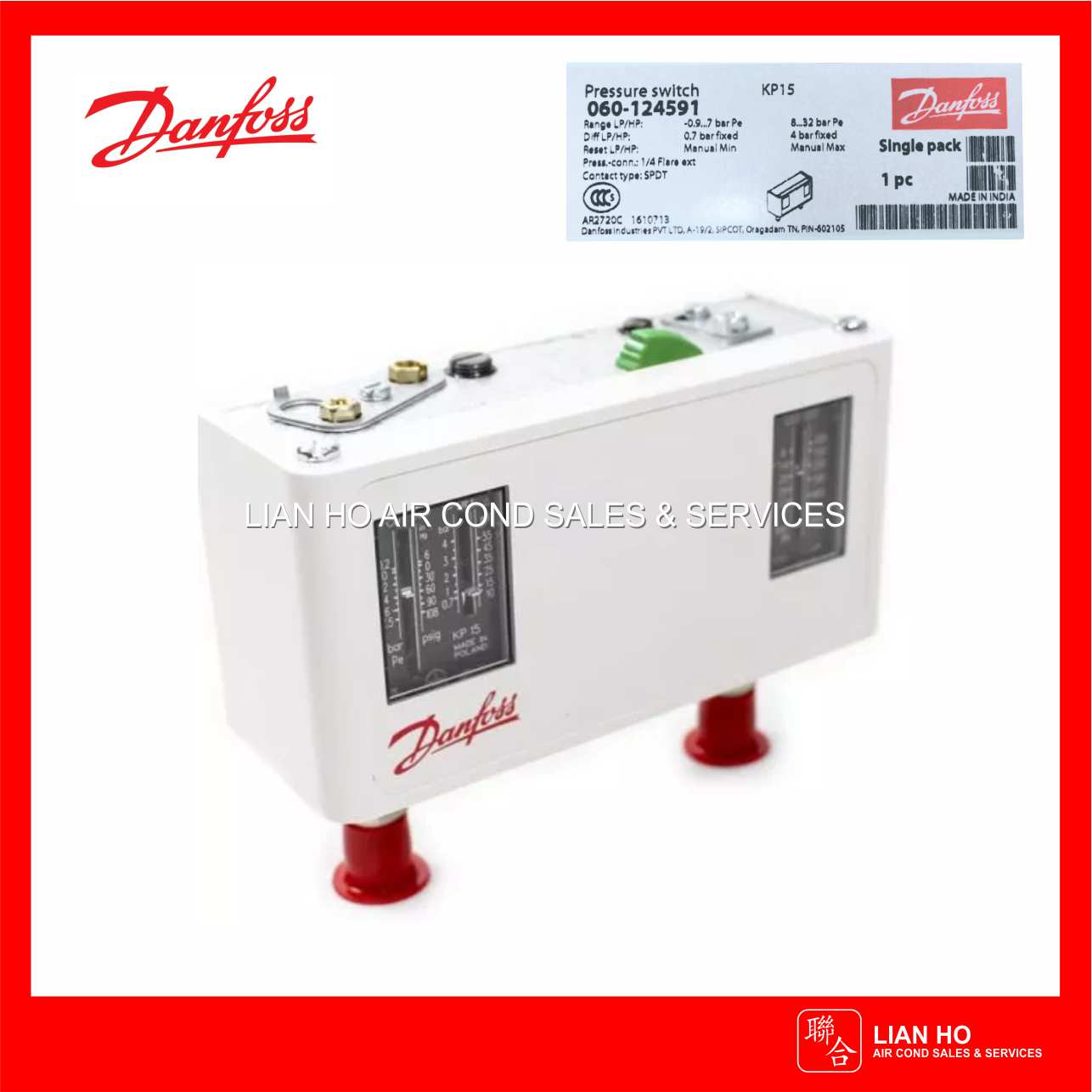

DANFOSS High/Low Pressure (060-124591)
Danfoss Pressure Switches
KP-1 models are single low-pressure switches with changeover contacts. Range –0.2 to 7.5 bar. Differential – Auto reset 0.7 to 4.0 – Manual 0.7 fixed
KP-5 models are single high-pressure switches with changeover contacts. Range 8 to 32 bar. Differential – Auto reset 1.8 to 6.0 – Manual 3.0 fixed
KP-15 models are dual switches fitted with an extra contact to give an independent low-pressure trip signal
Buy genuine Danfoss Products from Peace Refrigeration Sdn Bhd, Danfoss Authorised Distributor Malaysia.
More Details ⇓⇓⇓
Product details :
| Gross weight | 0.48 kg |
| Net weight | 0.42 kg |
| EAN | 5702424498108 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | BV CCC CE DNV GL LR LVD PZH RINA RMRS RoHS China c UL us UL873, CS C22.2 |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Differential left side [bar] | 0.7 bar |
| Differential left side [psi] | 10 psi |
| Differential right side [bar] | 4 bar |
| Differential right side [psi] | 58 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Equipment | |
| Further information | Not applicable for liquid line |
| Lubricants compatibility | Oilfree applications |
| Max.test press.left side[bar] | 20 bar |
| Max.test press.right side[bar] | 35 bar |
| MWP left side [bar] Pe | 17 bar |
| MWP left side [psig] Pe | 245 psig |
| MWP right side [bar] Pe | 35 bar |
| MWP right side [psig] Pe | 510 psig |
| Oil free refrigerants | R134a R513A R515B |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Dual Pressure Control |
| Product family name | KP |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 24 pc |
| Refrigerant oil compatibility | Oilfree applications R134a R513A R515B |
| Refrigerants | R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R450A R452A R507A R513A R449B R515B R1234yf R1234ze R454C R455A |
| Regulation left side [bar]Pe [Max] | 7 bar |
| Regulation left side [bar]Pe [Min] | -0.9 bar |
| Regulation left side range Pe | 27 inHg – 101 psig |
| Regulation right side [bar]Pe [Max] | 32 bar |
| Regulation right side [bar]Pe [Min] | 8 bar |
| Regulation right side [psig]Pe [Max] | 464 psig |
| Regulation right side [psig]Pe [Min] | 116 psig |
| Reset function, left side | Manual Min |
| Reset function, right side | Manual Max |
| Serviceable | No |
| Type | KP15 |
| UL approval file name | E31024 |
| UL approved refrigerants | R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B |
