FAJAR 1.0MM & 1.5MM Wire
Description

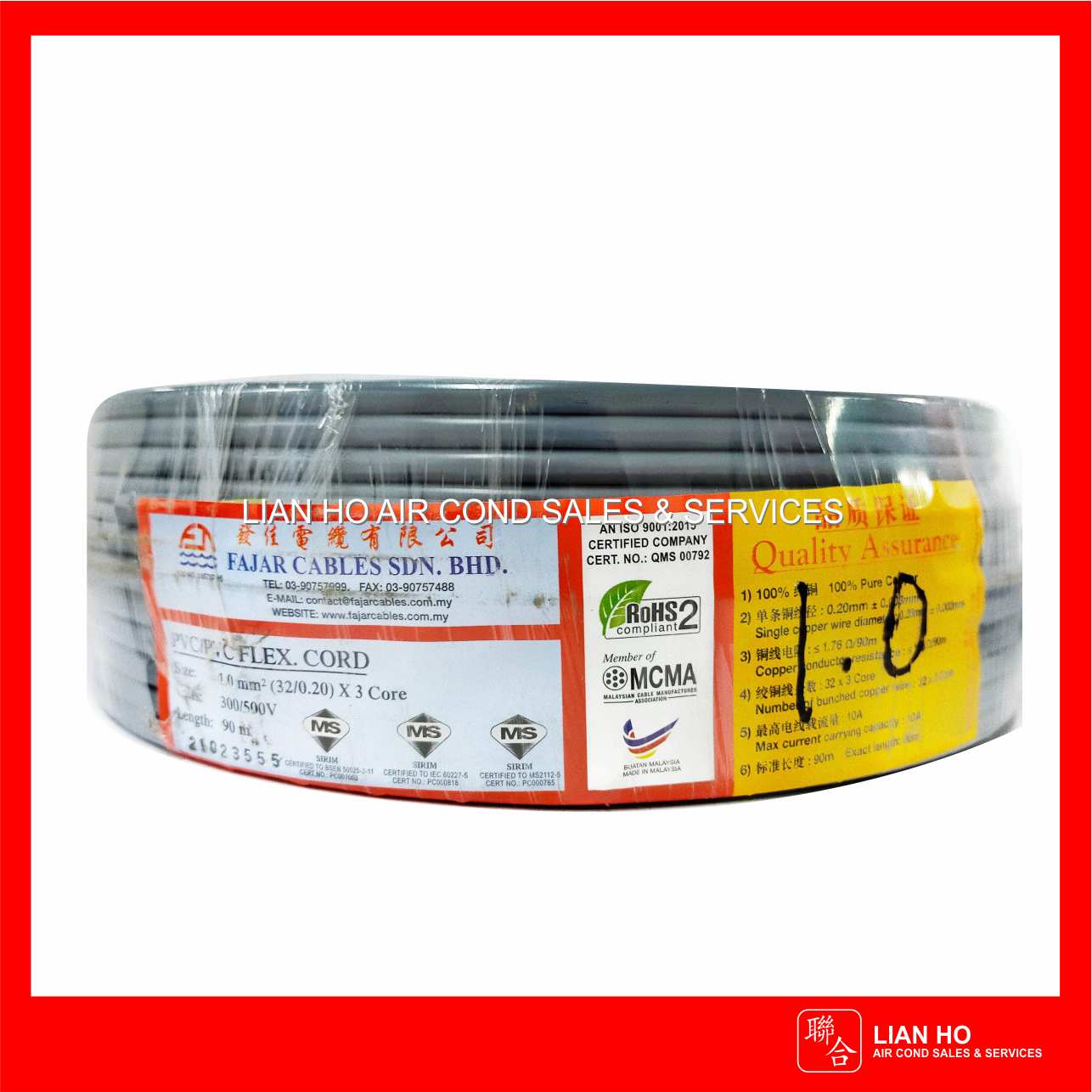

FAJAR 1.0MM Wire
- Conductor : Class 5 flexible plain annealed copper conductor
- Insulation : PVC (Polyvinyl Chloride)
- Sheath : PVC (Polyvinyl Chloride)
- Rated voltage: 300/500 Volts
- Specification: Refer to MS 140 and BS 6500
- Industry approvals: SIRIM MS 140:1987
- Applications: Household appliances, power and lighting
- 100% Pure Copper
- 3-core : Brown, blue and green/yellow
- Single copper wire diameter: 0.20mm +/- 0.003mm
- Copper conductor resistance: < 1.76 ohm/90m
- Number of bunched copper wire: 32 x 3 Core
- Max current carrying capacity: 10A

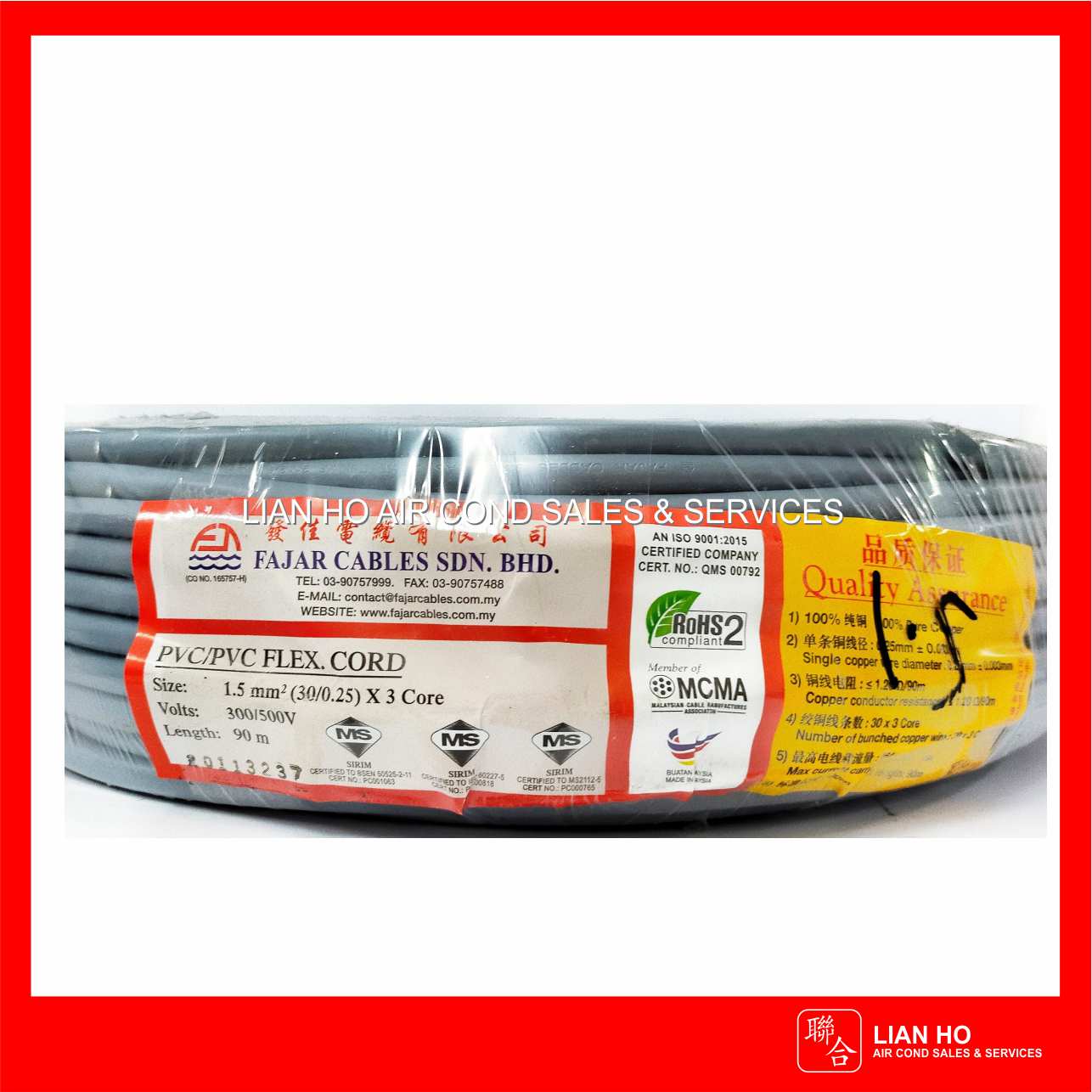

FAJAR 1.5MM Wire
- Conductor : Class 5 flexible plain annealed copper conductor
- Insulation : PVC (Polyvinyl Chloride)
- Sheath : PVC (Polyvinyl Chloride)
- Rated voltage: 300/500 Volts
- Specification: Refer to MS 140 and BS 6500
- Industry approvals: SIRIM MS 140:1987
- Applications: Household appliances, power and lighting
- Single copper wire diameter: 0.25mm +/- 0.003mm
- Copper conductor resistance: < 1.20 ohm/90m
- Number of bunched copper wire: 30 x 3 Core
- Max current carrying capacity: 16A
Additional information
| Weight | 3 kg |
|---|---|
| Wire Size | FAJAR 1.0MM, FAJAR 1.5MM |
