Description

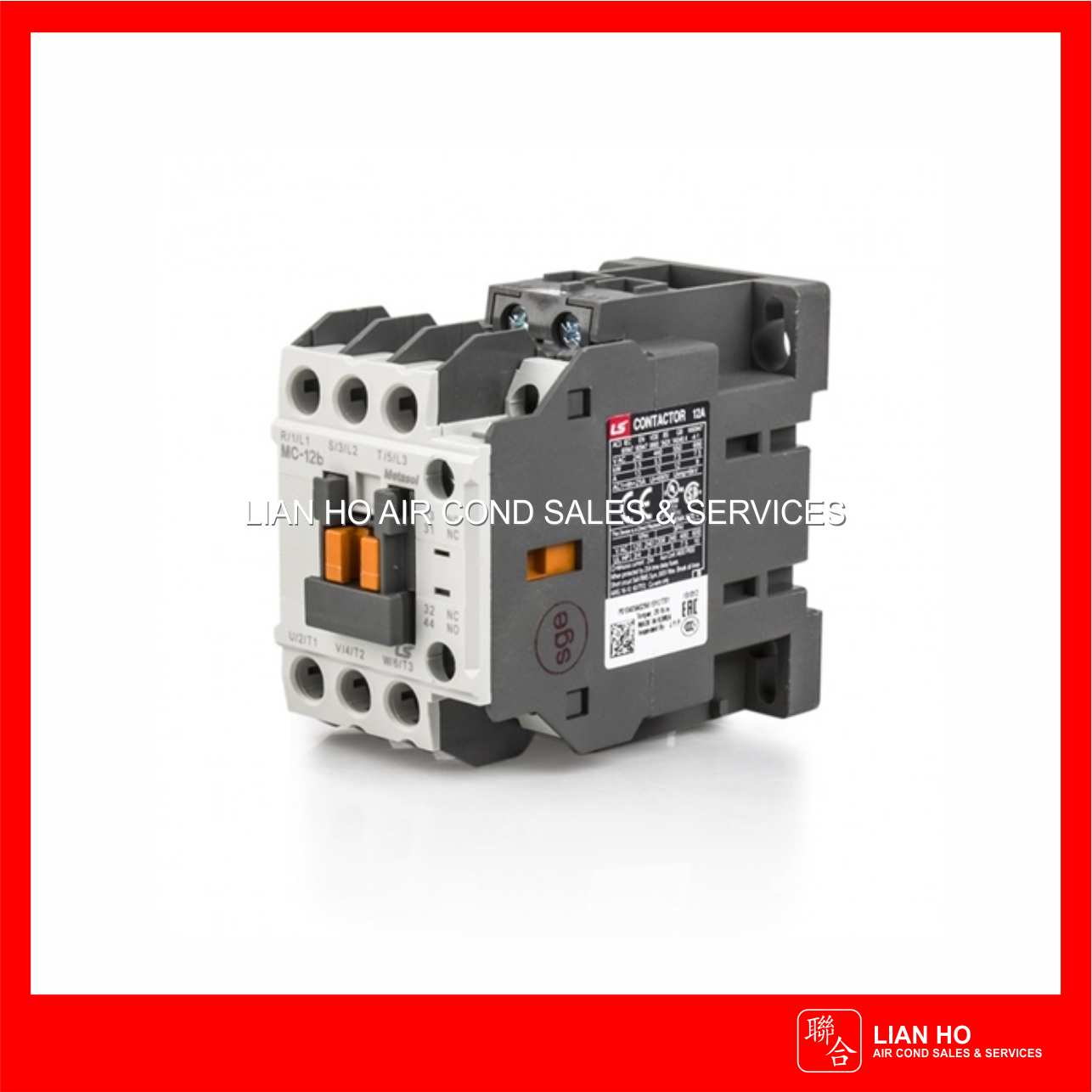

LS CONTACTOR AC240V (MC-12b)
MC12B CONTACTOR (REF: 1345003800),
 208VAC 60Hz
• 3 POLE, 1 NORMALLY OPEN & 1 NORMALLY CLOSED AUX CONTACT, SCREW TYPE TERMINAL, EXP
• FRAME SIZE: 22AF
• RATED CURRENT: 12A
• RATED INSULATION VOLTAGE 690V
• RATED FREQUENCY 50/60Hz
• COMPATIBLE OVERLOAD RELAY MT-32

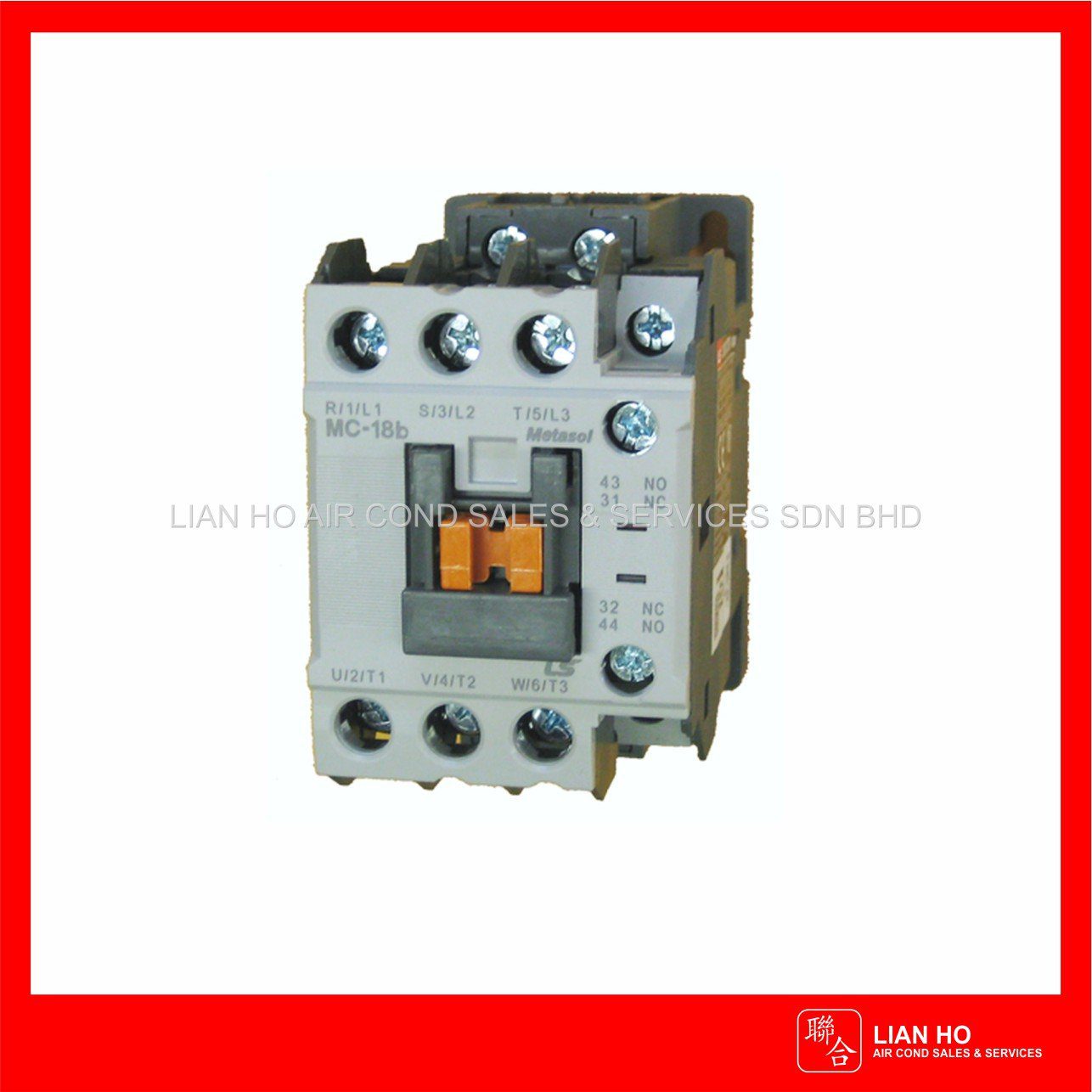

LS CONTACTOR AC240V (MC-18b)

Amp Rating: AC1 32A / AC3 18A

Coil Votage: 240VAC

Description

– 3-pole(NO) main contact
– Finger proof design
– DIN rail or screw mountable
– AC or DC control in different physical size
– Front/side mountable accessories available
– Direct mountable overload relay available Rating
– 1NO and 1NC Auxiliary contact built-in as standard.

Sealed structure has improved its safety features so that no arc flash is exposed. In order to emphasize its durability as an industrial device, Metasol LS MC series adopt simple design form and sophisticated shape applying diamond cut concepts on product surface.
