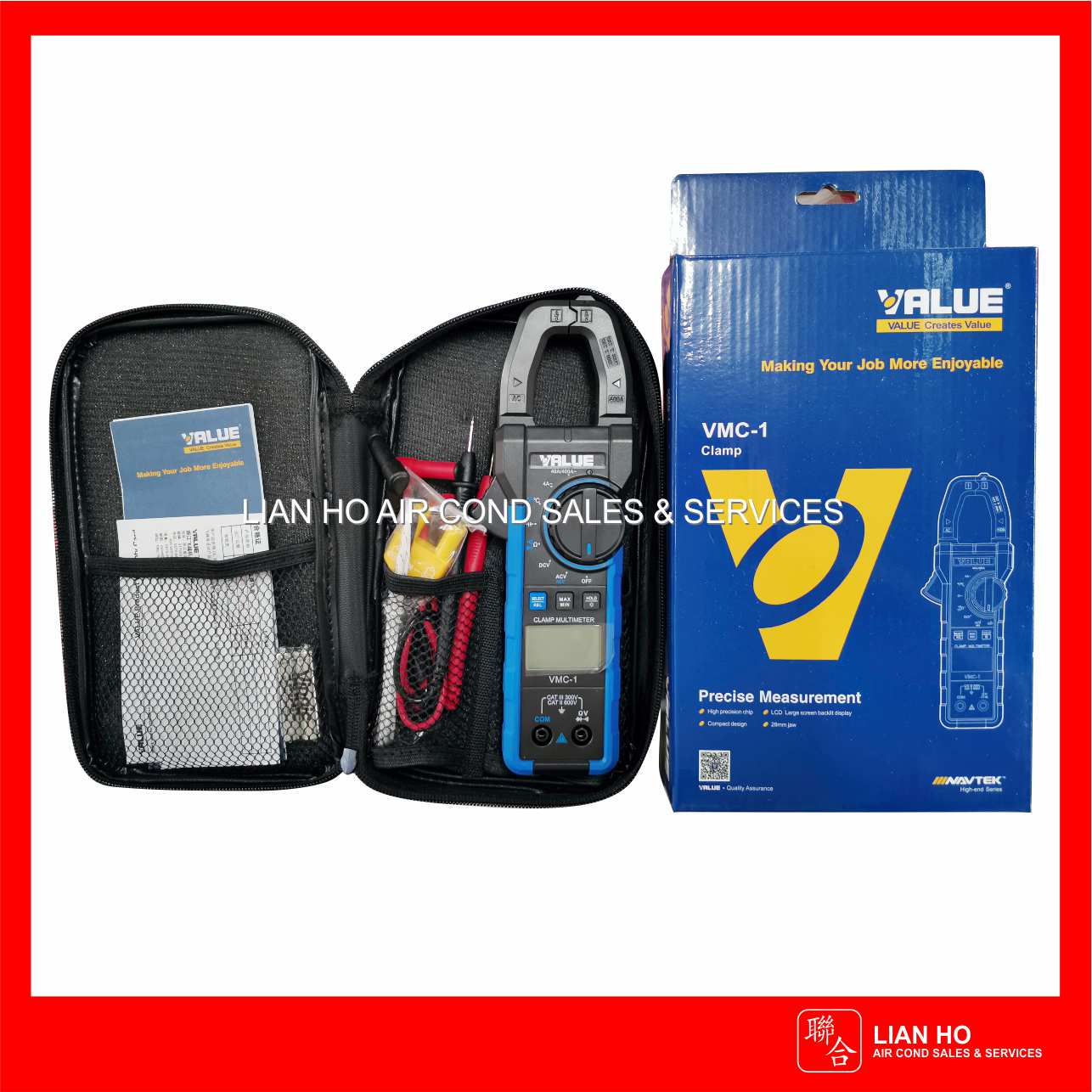

VALUE® Digital Multi Clamp Meter (VMC-1)

Description

VALUE®️Digital Multi Clamp Meter VMC-1

Model VMC-1
Max Measurement Voltage 600V
Max Measurement AC Current 400A
Max Measurement Capacitance 40M
Temperature Measurement Range -40 ????~1000 ????

VMC-1 series are 4000-count hand-held clamp meters with auto range feature. The meter is designed with ergonomic structure and overload protection for each range, which makes it superior tool for electricians. VMC-1 series can measure AC/DC voltage, AC current, resisance, diode, contiuity, capacitance, temperature and perform data hold, max/min measurement, relative value measurement, NCV (non-contact voltage), low battery indication, auto/visual alarm and auto power off functions.

LCD display : max. disp. value 4099
Polarity display : automatic
Overload display : “OL” or “-OL”
Low battery indication : yes
Measurement deviation : if the conductor being measured is not placed in the center of the jaw during current measurement, it will cause extra ±1.0% reading error.
Drop test : 1m drop test passed
Max. jaw opening : 28 mm
Max. current conductor size : 28 mm
Power supply : 2 x AAA 1.5V

Precise Measurement
-High precision chip
-LCD Large screen backlit display
-Compact design
-28mm jaw

VALUE•Quality Assurance
